Les Pinces Micros :
The micro clamps cover measuring needs on small sized conductors up to 200A. Their thin jaws can enclose cables with a max diameter of 15mm which make them the ideal choice for measuring hard to reach conductors. This range exists for the measure of insulated conductors (M1, M2) as well as naked ones (M3 and M4 are 600V CAT III). The longer casing of the M2 and M4 allow space for a PCB, useful for some applications such as to improve the phase shift for power measurement or rectifying the signal for DC data loggers.

   M1 & M3 models:

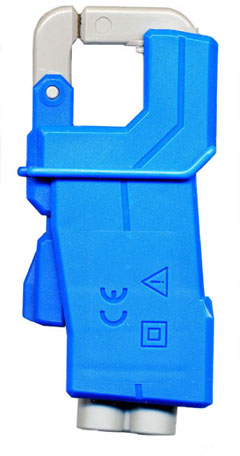

M1.UB
Pince micro M1.UB
Dedicated to low currents from 10mA to 50A
Jaw opening: 15x17mm
Starting at: 124 euros

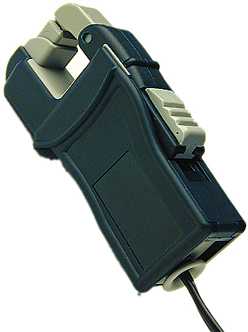

M3.UB
Pince micro M3.UB
600V cat III, dedicated to AC low currents from
10mA to 50mA
Jaw opening: 15x17mm
starting at: 172 euros

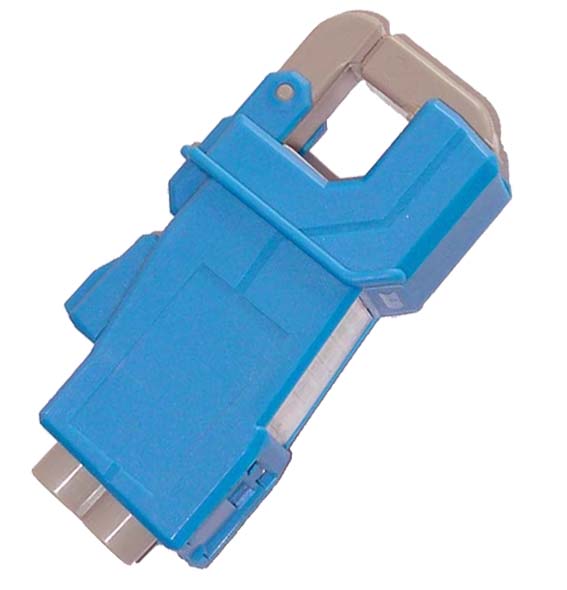

M1 & M1.U
Pince micro M1 & M1.U
For AC current with voltage or current output from 100mA to 200A
Jaw opening: 15x17mm
starting at: 75 euros

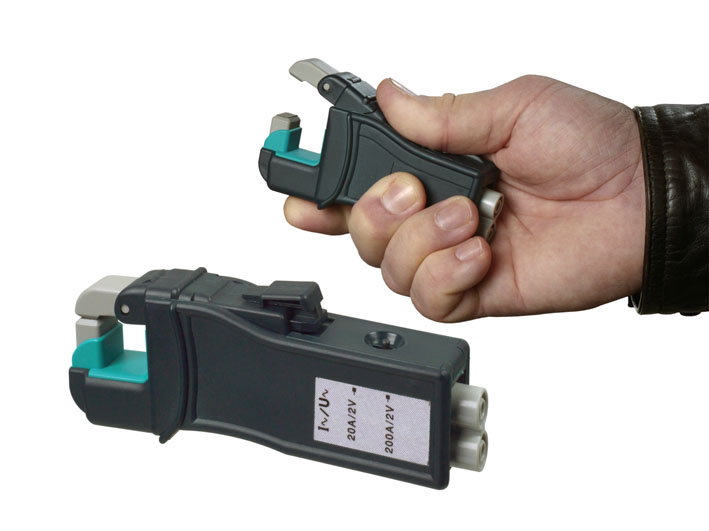

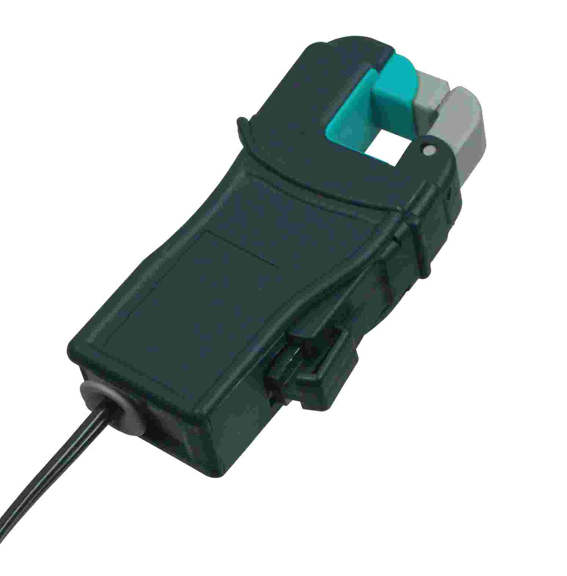

M3 & M3.U
Pince micro M3 & M3.U
600V cat III, for AC current with voltage or current output from 100mA to 200A
Jaw opening: 15x17mm
starting at: 98 euros

   M2 & M4 models :

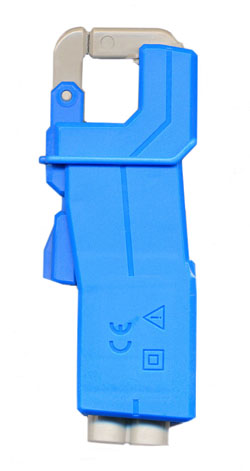

M2.U M2.UB M2.V M2.VB
Pince micro M2.U M2.UB M2.V M2.VB
Mono or multi ratio
AC or DC output
Primary AC
Starting at: 96 euros

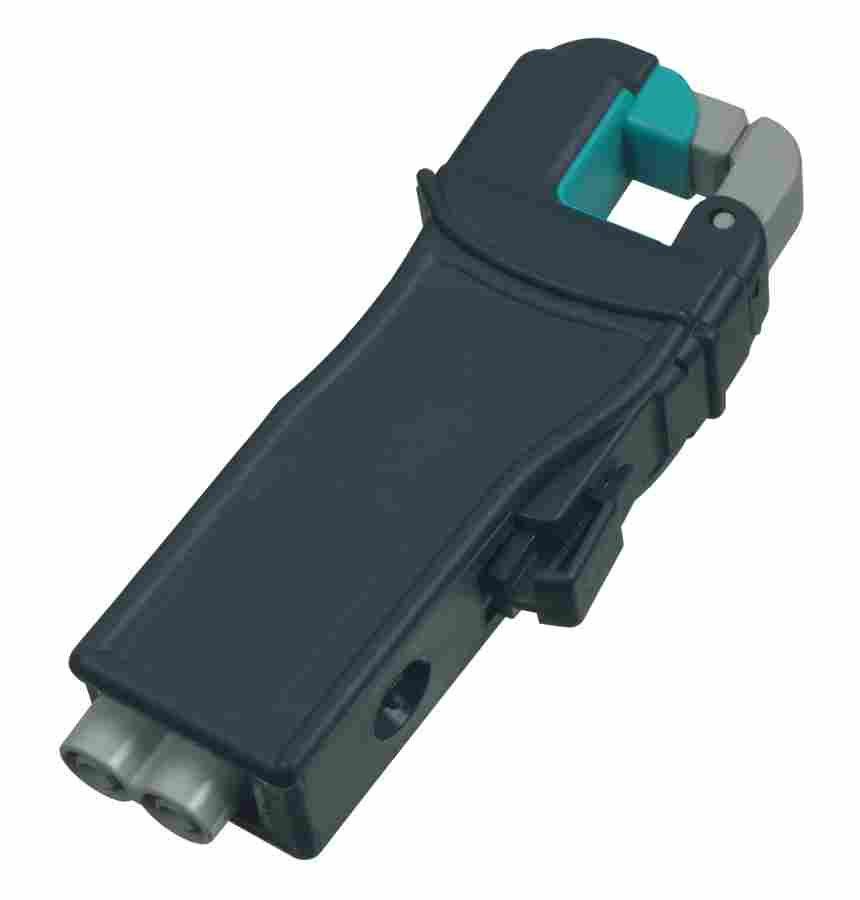

M4.U M4.UB M4.V M4.VB
Pince micro M4.U M4.UB M4.V M4.VB
600V cat III
Mono or multi ratio
AC or DC output
Primary AC
Starting at: 111 euros
Technical safety innovation
SIAC, Système Anti Court Circuit
"SIAC"
Universal Technic innovates for your safety “SIAC”, Anti short circuit current system is a device made to prevent short circuit current. It makes the user safer. You can find it on the M3, M4 and SM clamps

   M2.1C model:

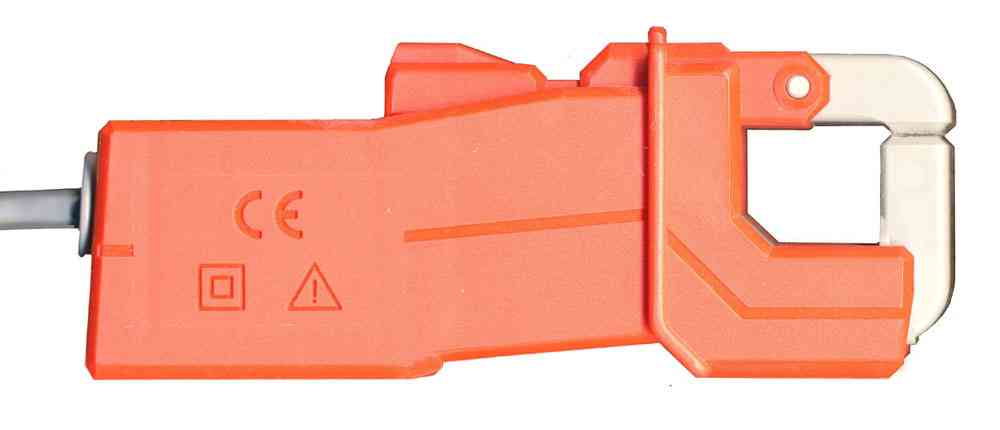

M2.1C for AC/DC currents

Pinces micro M2.1C pour courants AC/DC
Hall Effect technologies for the measure of DC currents from 10A up to 300A
Primary: from 1A to 300A
output : from 1 to 3V
Cable diameter: 15mm
Power supply: 9Vdc to 18Vdc
Starting at: 153 euros
