Medium sized clamps :
The middle sized clamps are divided into models each with their own characteristics. They can, depending on the model, measure currents up to 1200A and enclose cables up to 54mm. This family includes economical types of clamps such as the US and NS, the S type for the measures of naked conductors, the SM clamps with their distributed winding for a more accurate measure as well as the SC Hall Effect clamp for DC currents.

US & NS models:

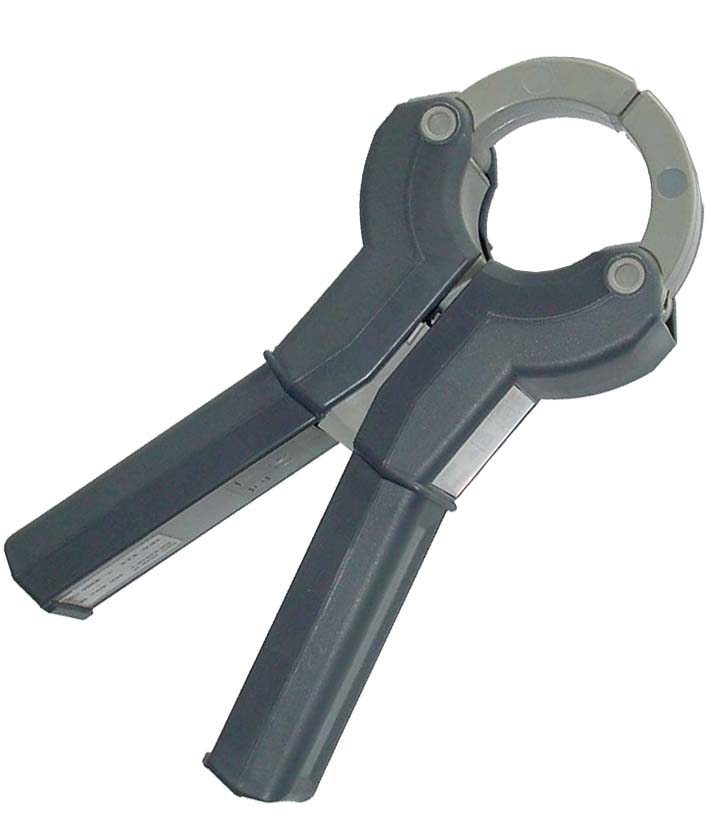

US Primary : 1A to 1200A Output : 1A or 5A Mono or multi ratio Max cable diameter 43 mm Starting at : 129 euros

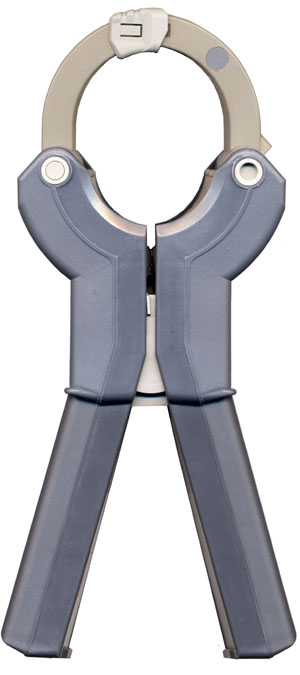

NS Primary : 1A to 1200A Output : 1A or 5A Mono or multi ratio Max cable diameter 50 mm Starting at : 141 euros

NS.U Primary : 1A to 1200A Output : 1Vac or 1Vdc Mono or multi ratio Max cable diameter 50 mm Starting at : 162 euros

US.U Primary : 1A to 1200A Output : 1Vac or 1Vdc Mono or multi ratio Max cable diameter 43 mm Starting at : 145 euros

S model:

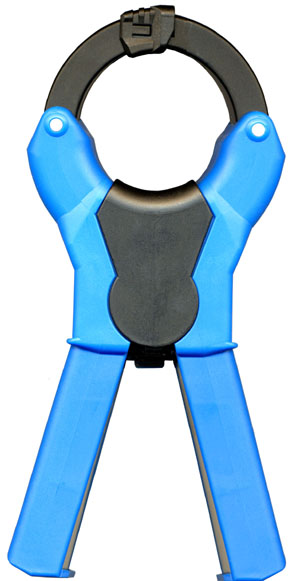

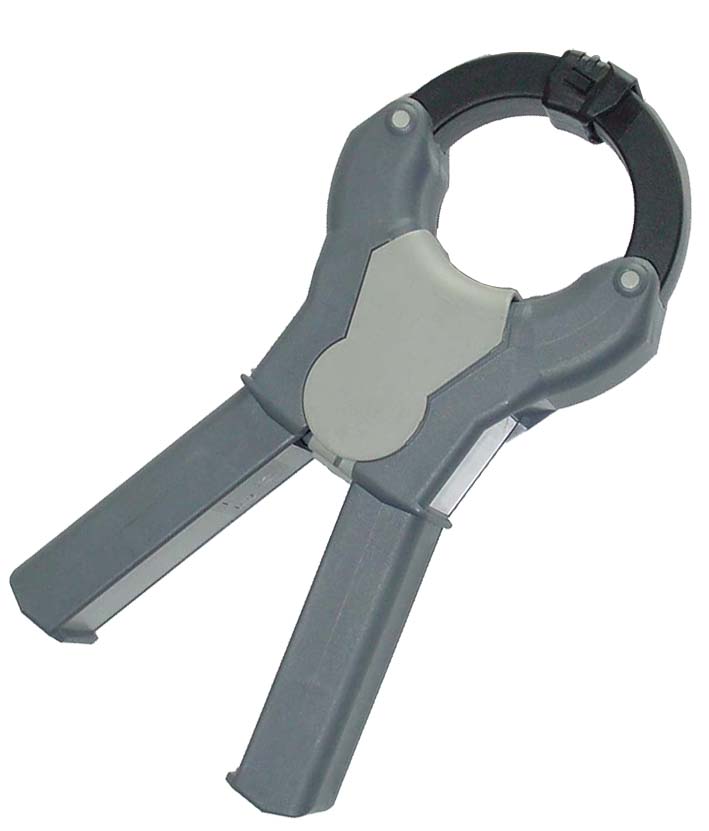

S Primary : 1A to 1200A Output : 1 A or 5 A Mono or multi ratio Max cable diameter 50 mm Starting at : 143 euros

S.U Primary : 1A to 1200A Output : 1Vac or 1Vdc Mono or multi ratio Max cable diameter 50 mm Starting at : 167 euros

SM model:

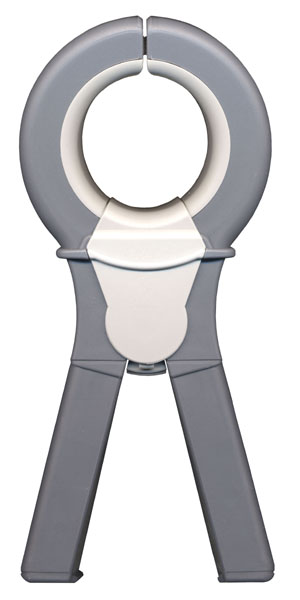

SM Primary: 1A to 1400A Output: 1A ou 5A Mono or multi ratio Cable diameter 54 mm Starting at: 168 euros

SM.U SM.UB SM.V SM.D Primary: 10 mA to 1400 A Output: 1 Vac or 1 Vdc Mono or multi ratio Cable diameter 54 mm Starting at: 203 euros

Technical safety innovation "SIAC" Universal Technic innovates for your safety “SIAC”, Anti short circuit current system is a device made to prevent short circuit current. It makes the user safer. You can find it on the M3, M4 and SM clamps

Modèle SC :

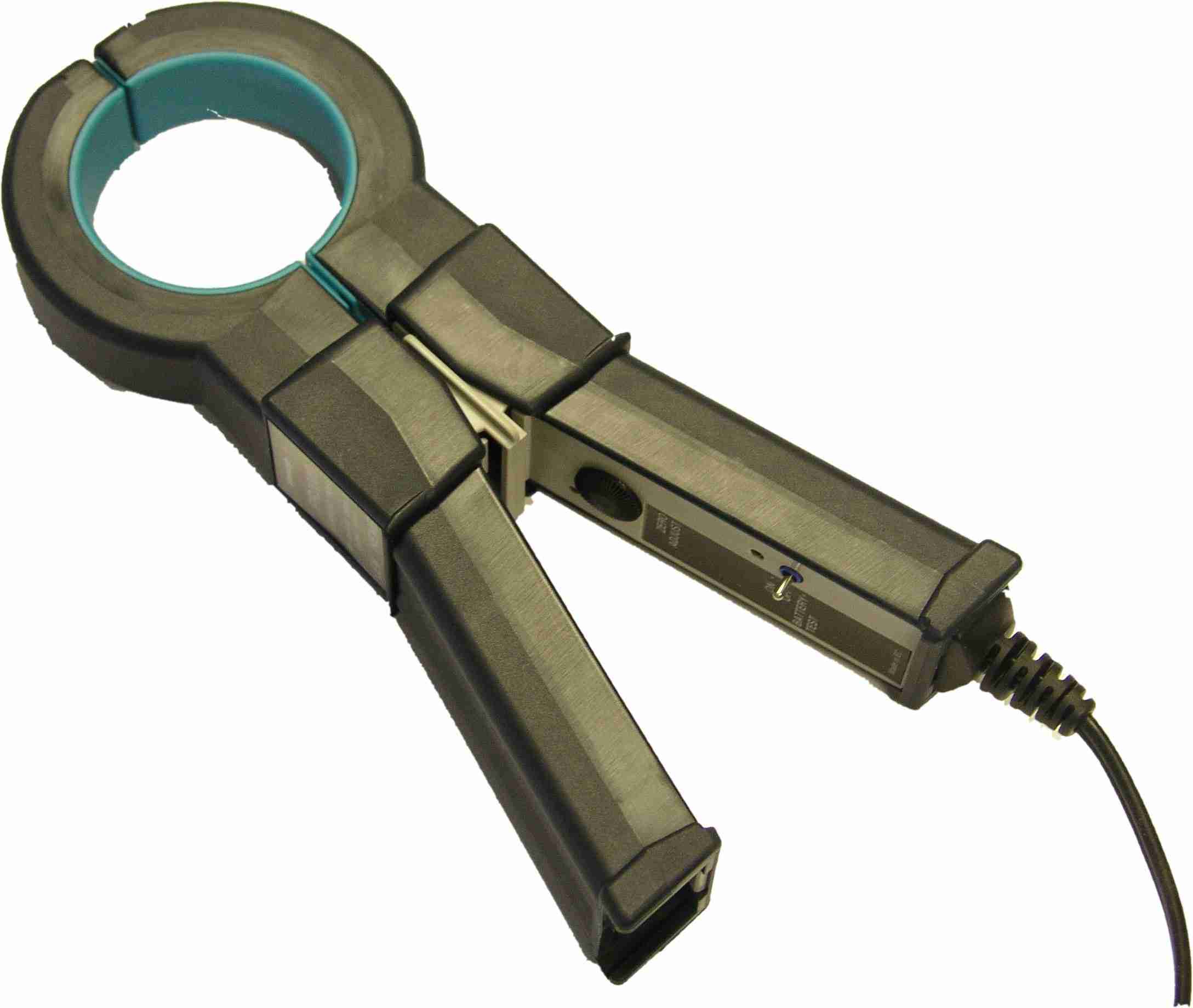

SC

Primary : from 1A to 1500A Output : 1V or 2V Cable diameter 50mm Power supply: from 9Vdc to 18Vdc, or using 9V batteries (autonomy ~ ca 72h) Starting at: 198 euros

---
