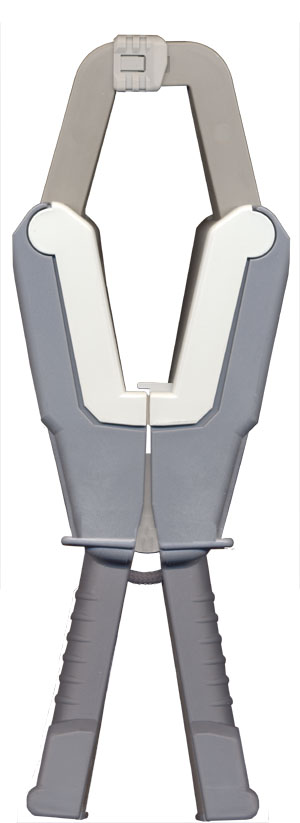

| Version | Current (E16) or Voltage (E16.U) |
|---|---|
| Current range | 1 A to 1,600 A |
| Jaw opening | Ø54 mm / 100×30 / 120×20 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
| Ratio | Up to 3 ratios on a single clamp |
Large AC clamps — very high currents
Large clamps for high currents: type 16 up to 1,600 A and type 32 up to 3,200 A (E, H, P).
- E16 / H16 / P16 — up to 1,600 A
- E32 / H32 / P32 — up to 3,200 A
- Up to 3 ratios on a single clamp
- French manufacturing — Paris
Large clamps — type 16
Measurements up to 1,600 A. Three jaw formats: E16, H16 and P16.

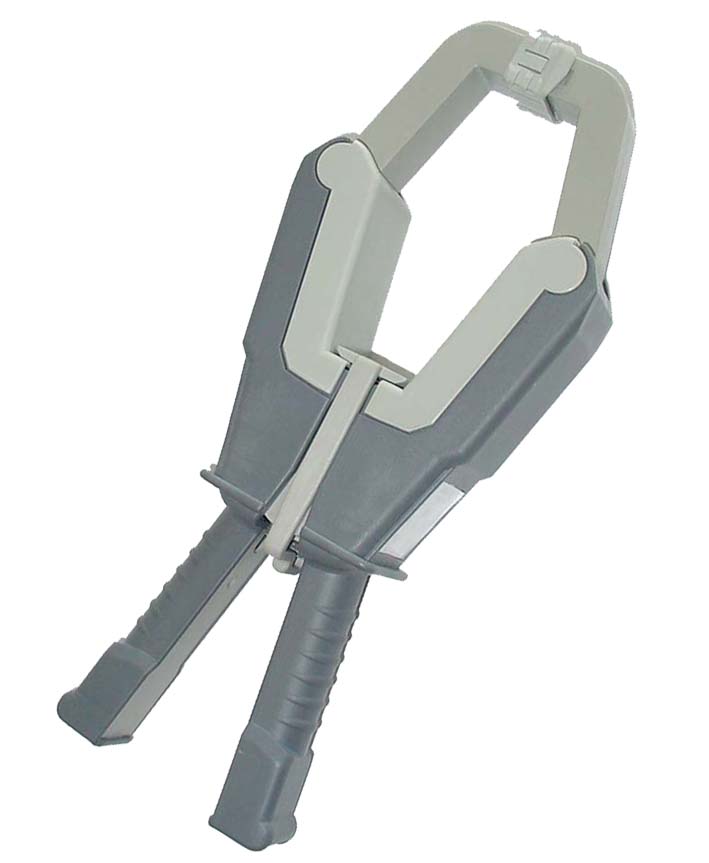

| Version | Current (H16) or Voltage (H16.U) |
|---|---|
| Current range | 1 A to 1,600 A |
| Jaw opening | Ø67 mm / 100×44 / 120×35 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
| Ratio | Up to 3 ratios on a single clamp |

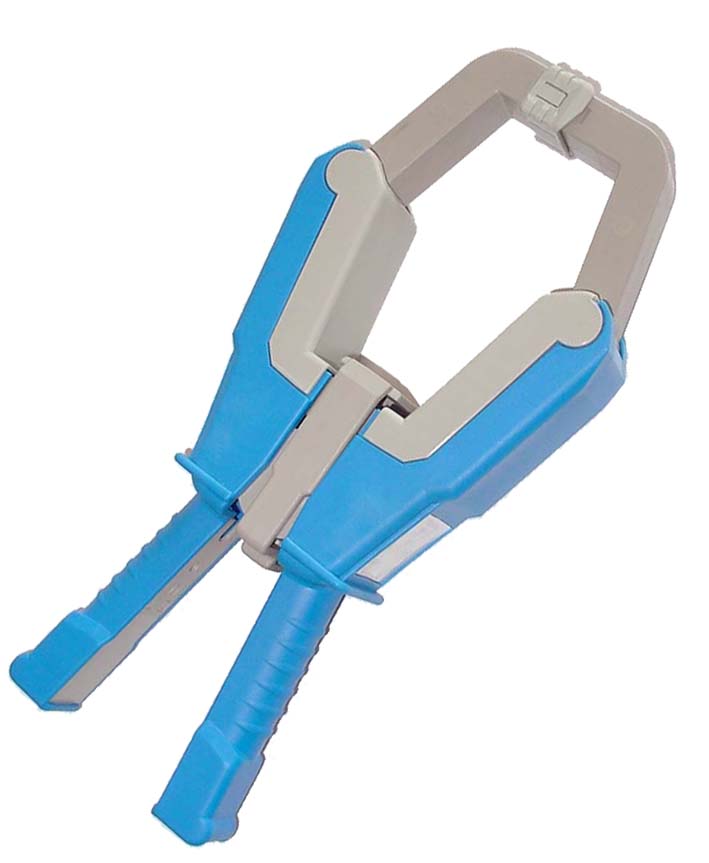

| Version | Current (P16) or Voltage (P16.U) |
|---|---|
| Current range | 1 A to 1,600 A |
| Jaw opening | Ø80 mm / 100×56 / 120×47 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
| Ratio | Up to 3 ratios on a single clamp |
Large clamps — type 32
Type 32 series for high AC currents — up to 3,200 A (E32, H32, P32).

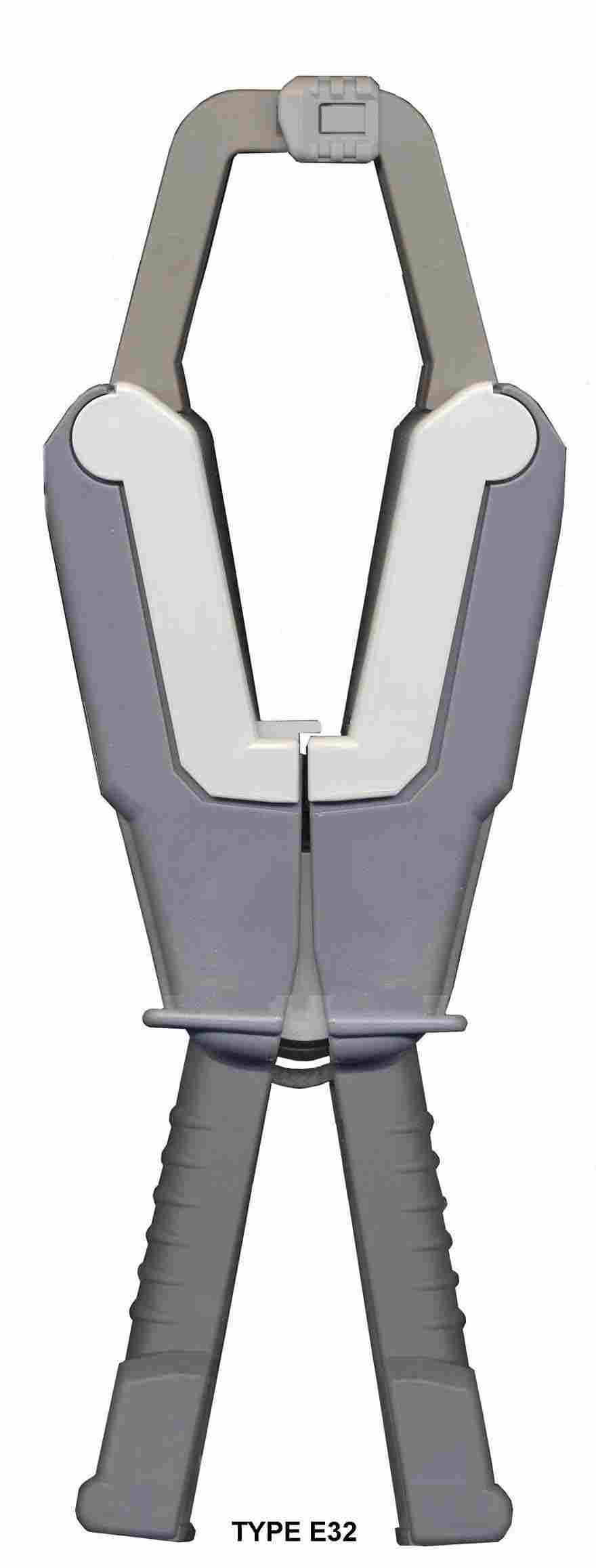

| Version | Current (E32) or Voltage (E32.U) |
|---|---|
| Current range | 1 A to 3,200 A |
| Jaw opening | Ø56 mm / 100×30 / 120×23 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
| Ratio | Up to 3 ratios on a single clamp |

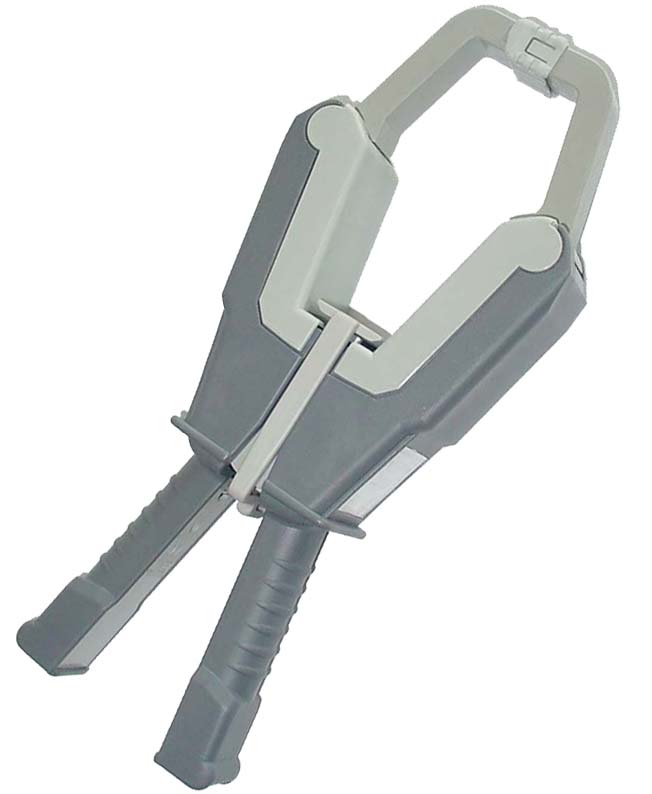

| Version | Current (H32) or Voltage (H32.U) |
|---|---|
| Current range | 1 A to 3,200 A |
| Jaw opening | Ø70 mm / 100×45 / 120×37 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
| Ratio | Up to 3 ratios on a single clamp |

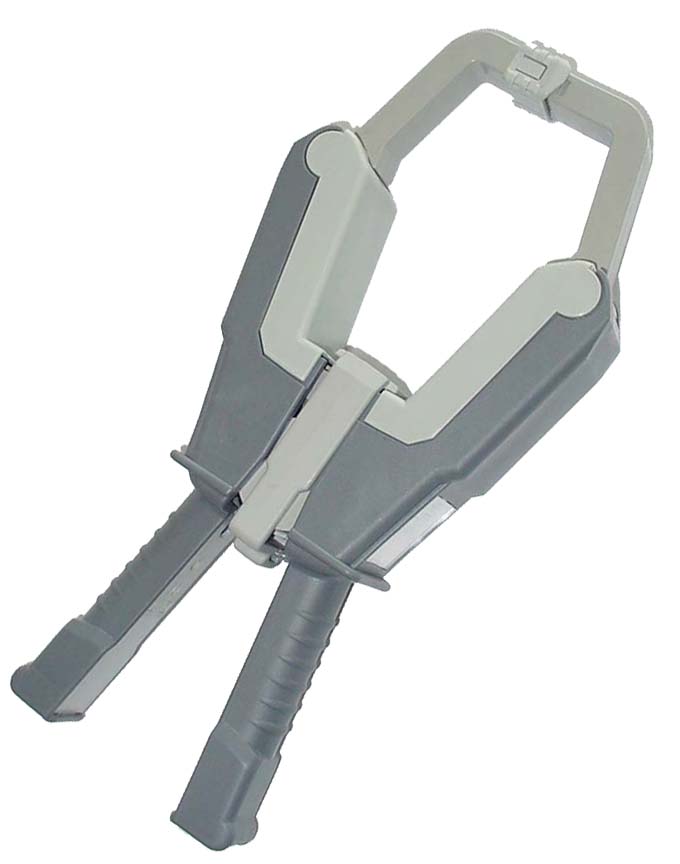

| Version | Current (P32) or Voltage (P32.U) |
|---|---|
| Current range | 1 A to 3,200 A |
| Jaw opening | Ø83 mm / 100×57 / 125×46 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
| Ratio | Up to 3 ratios on a single clamp |
