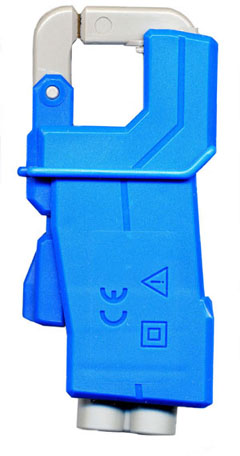

| Version | Current (M1) or Voltage (M1.U) |
|---|---|
| Current range | 10 mA to 200 A |
| Jaw opening | Ø15 mm / 15×17 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
AC micro clamps — opening current sensors for small conductors
Measurement on small conductors, currents up to 200 A. Current or voltage versions (M1 to M4).
- Jaw opening: Ø15 mm / 15×17 (busbar)
- 10 mA to 200 A depending on model
- 1% typical accuracy
- French manufacturing — Paris
AC micro clamps
Four compact models for low-current measurement: M1, M2, M3 and M4. Current or voltage versions, Ø15 mm opening.
| Version | Current (M2) or Voltage (M2.U) |
|---|---|
| Current range | 10 mA to 200 A |
| Jaw opening | Ø15 mm / 15×17 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |

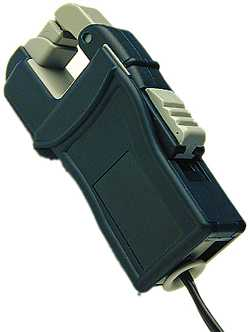

| Version | Current (M3) or Voltage (M3.U) |
|---|---|
| Current range | 100 mA to 200 A |
| Jaw opening | Ø15 mm / 15×17 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
| Version | Current (M4) or Voltage (M4.U) |
|---|---|
| Current range | 100 mA to 200 A |
| Jaw opening | Ø15 mm / 15×17 (busbar) |
| Accuracy | 1% typical |
| Output | 4 mm safety socket or custom cable |
| Ratio | Up to 3 ratios on a single clamp |
